ISSUE:
Appliance:
[admin@versa-branch-11: ~] # sudo /opt/versa/scripts/./staging.py -l SDWAN-Branch@Provider.com -r controller-1-staging@Provider.com -n SR110 -c 192.168.17.3 -w 0 -s 192.168.19.11/24 -g 192.168.19.1
=> Setting up staging config
=> Checking if all required services are up
=> Checking if there is any existing config
=> Generating staging config
=> Config file saved staging.cfg
=> Saving serial number
=> Loading generated config into CDB
admin@versa-branch-11-cli> show interfaces brief | tab
NAME MAC OPER ADMIN TENANT VRF IP
-----------------------------------------------------------------------------
eth-0/0 00:50:56:81:75:1c up up 0 global 10.22.5.11/23
tvi-0/1 n/a up up - -
tvi-0/1.0 n/a up up 1 mgmt 10.0.1.22/24 <<<Receiving the management IP
vni-0/0 00:50:56:81:82:be up up - -
vni-0/0.0 00:50:56:81:82:be up up 1 grt 192.168.19.11/24
vni-0/1 00:50:56:81:ec:0d down down - -
admin@versa-branch-11-cli> show orgs org-services Provider ipsec vpn-profile branch ike history
Local Gateway: 192.168.19.11 Remote Gateway: 192.168.17.3
Last Known State : Active <<<IKE is successful
Last State Timestamp : 2018-05-18T09:41:15.428401-08:00
Event History:
0. Event : IKE Done
Timestamp : 2018-05-18T09:41:15.428404-08:00
Role : initiator
Inbound SPI : 0xc3d7d3e93b5d0002
Outbound SPI : 0x3910232bea7e0002
Director:

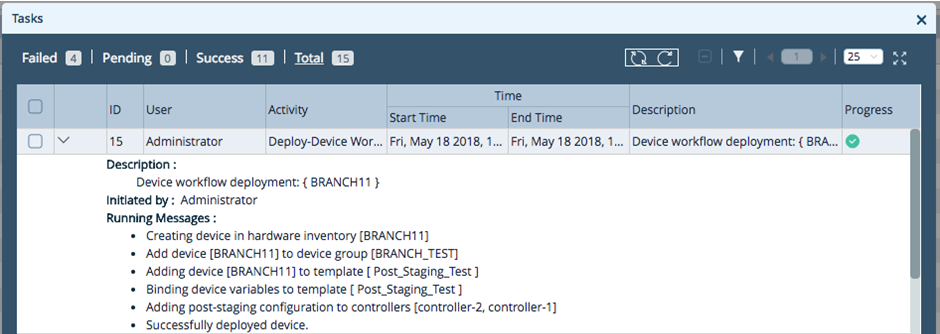

- Director shows that the deployment has been successful,
SOLUTION:
Please make sure that the global tenant-id on the Controller and the Branch is same,
Controller:
admin@controller-1-cli(config)% show orgs org
org Provider {
....
....
sd-wan {
site {
global-tenant-id 4; <<<<Not matching the global-id of the appliance
Appliance:
admin@versa-branch-11-cli(config)% show orgs org
org Provider {
....
....
}
sd-wan {
site {
global-tenant-id 1; <<<<Not matching the global-id of the controller
On the CPE, global tenant id needs to be 4 assuming that on the Controller, the staging VPN profile ins the “Provider” org.
To change this on the CPE, Please do the following on the CPE:
admin@versa-branch-11-cli> request erase running-config
This will delete all the config and restart. Wait for services to come up.Then re-run the staging script as follows:
[admin@versa-branch-11: ~] # sudo /opt/versa/scripts/./staging.py -l SDWAN-Branch@Provider.com -r controller-1-staging@Provider.com -n SR110 -c 192.168.17.3 -w 0 -s 192.168.19.11/24 -g 192.168.19.1 -gt 4
