Please refer to the "New update" section towards the end of this document, we now have a run file to execute all of the below

Method 1:

Note: System needs to be rebooted for the eeprom update to take effect. Service may be interrupted during the system reboot. It is highly recommend to perform the following procedure during a maintenance window.

Step 1:

Download the file named CSG300_i354_eeprom.tar.gz from the link below to CSG300, extract and check the contents

https://versanetworks.box.com/s/rpw0lvofthqn6gh0b1563vvnz88vevml

[admin@versa-flexvnf: tmp] $ sudo md5sum CSG300_i354_eeprom.tar.gz

4719273fe57242aef67480e07a209ee5 CSG300_i354_eeprom.tar.gz

[admin@versa-flexvnf: tmp] $ sudo tar -xf CSG300_i354_eeprom.tar.gz

[admin@versa-flexvnf: tmp] $ ls

CSG300_i354_eeprom CSG300_i354_eeprom.tar.gz

[admin@versa-flexvnf: tmp] $ cd CSG300_i354_eeprom/

[admin@versa-flexvnf: CSG300_i354_eeprom] $ ls -l

total 21368

-rwxr-x--x 1 admin versa 3421296 Dec 19 2017 celo64e

-rwxr-x--x 1 admin versa 41984 Jan 5 2022 Dev_start_Atom_C2000_4port_SGMII_NoMNG_1-08.hex

-rwxr-x--x 1 admin versa 3505278 Dec 19 2017 eeupdate64e

-rwxr-x--x 1 admin versa 10864640 Aug 19 09:38 eeupdate64e.tar.gz

-rwxr-x--x 1 root root 41984 Aug 19 09:52 I354-0_3002843F.EEP

-rwxr-x--x 1 root root 41984 Aug 19 09:52 I354-1_30028440.EEP

-rwxr-x--x 1 admin versa 2139 Dec 19 2017 install

-rwxr-x--x 1 admin versa 49448 Dec 19 2017 iqvlinux.tar.gz

-rwxr-x--x 1 admin versa 181 Aug 19 10:03 MD5SUM.txt

-rwxr-x--x 1 admin versa 3875973 Dec 10 2017 nvmupdate64e

-rwxr-x--x 1 admin versa 6164 Aug 19 10:21 Readme.txt

[admin@versa-flexvnf: CSG300_i354_eeprom] $

Step 2:

Run following command to check the NIC's available

$ sudo ./eeupdate64e

Connection to QV driver failed - please reinstall it!

Using: Intel (R) PRO Network Connections SDK v2.30.25

EEUPDATE v5.30.25.06

Intel (R) Confidential and not for general distribution.

Driverless Mode

Warning: No Adapter Selected

NIC Bus Dev Fun Vendor-Device Branding string

=== === === === ============= =================================================

1 0 20 00 8086-1F41 Intel(R) Ethernet Connection I354

2 0 20 01 8086-1F41 Intel(R) Ethernet Connection I354

3 4 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

4 5 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

5 6 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

6 11 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

7 12 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

Step 3:

Run the following command to flash the eeprom of the first i354 NIC detected (i.e. NIC=1)

$ sudo ./eeupdate64e /NIC=1 /D Dev_start_Atom_C2000_4port_SGMII_NoMNG_1-08.hex

Connection to QV driver failed - please reinstall it!

Using: Intel (R) PRO Network Connections SDK v2.30.1

EEUPDATE v5.30.01.00

Intel (R) Confidential and not for general distribution.

Driverless Mode

NIC Bus Dev Fun Vendor-Device Branding string

=== === === === ============= =================================================

1 0 20 00 8086-1F41 Intel(R) Ethernet Connection I354

2 0 20 01 8086-1F41 Intel(R) Ethernet Connection I354

3 4 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

4 5 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

5 6 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

6 11 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

7 12 00 00 8086-1539 Intel(R) I211 Gigabit Network Connection

Writing EEPROM. PLEASE DO NOT INTERRUPT THIS PROCESS.

1: EEPROM image (excluding MAC Address) updated successfully.

1: Updating Checksum and CRCs...Done.

Step 4:

Run the following command to reboot the system

$ sudo reboot

Step 5:

After system is rebooted, check and make sure all interfaces are detected and MAC addresses are still intact.

admin@SDWAN-Controller1-cli> show interfaces brief | tab | nomore

NAME MAC OPER ADMIN TENANT VRF IP

----------------------------------------------------------------------------------------

eth-0/0 ac:43:30:02:84:42 up up 0 global 10.10.10.10/8

vni-0/0 ac:43:30:02:84:3d up up - -

vni-0/1 ac:43:30:02:84:3e down up - -

vni-0/2 ac:43:30:02:84:3f down down - -

vni-0/3 ac:43:30:02:84:40 down up - -

vni-0/4 ac:43:30:02:84:41 down down - -

[ok][2023-08-19 10:13:10]

admin@SDWAN-Controller1-cli>

<< DONE >>

New Update (16/05/2024)

Method 2:

We have developed a binary to execute all of the above operations to simply the process

Please download the zip file and unzip it to extract the Versa_csg300s_i354_fix_2024-01-23 1.run file

Upload this file to the problematic csg355 or csg350 (to /home/admin or any directory - it doesn't matter)

Set the permissions for this file on the device using the below

chmod a+x Versa_csg300s_i354_fix_2024-01-23 1.run

Execute the file as below

sudo ./Versa_csg300s_i354_fix_2024-01-23 1.run

Once the execution has completed please execute a reboot using "sudo reboot"

Check "show interfaces brief" if the ports are detected fine

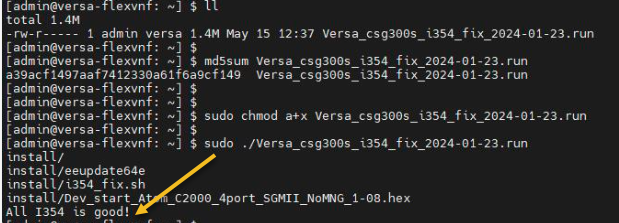

Note: If you execute this run file on a device where there are no issues with the i354 ports then it will return the below result (also note the md5sum for reference)

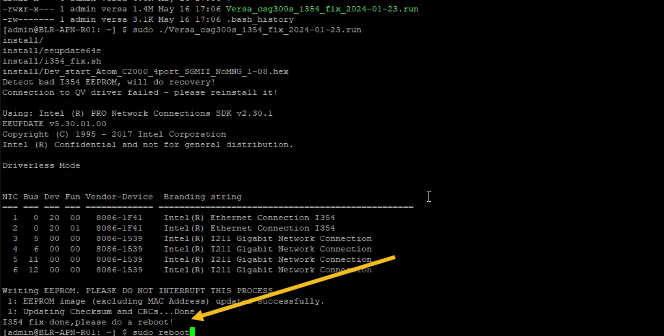

When executed on a problematic node it will mention the below stating "I354 fix done" post which you will need to execute "sudo reboot"
