Overview

Versa allows configuring DHCP static and DHCP dynamic servers on the same LAN interface and subnet. This requires proper separation and ordering to ensure correct IP allocation.



Key Requirements

  • A Static Mapping Profile is mandatory for DHCP static servers.

  • Static and dynamic DHCP must be configured as separate server profiles.

  • Both servers can share:

    • LAN interface / network

    • Lease profile

    • DHCP options profile



Configuration Best Practices:

Server Separation and Order

  1. Static DHCP Server

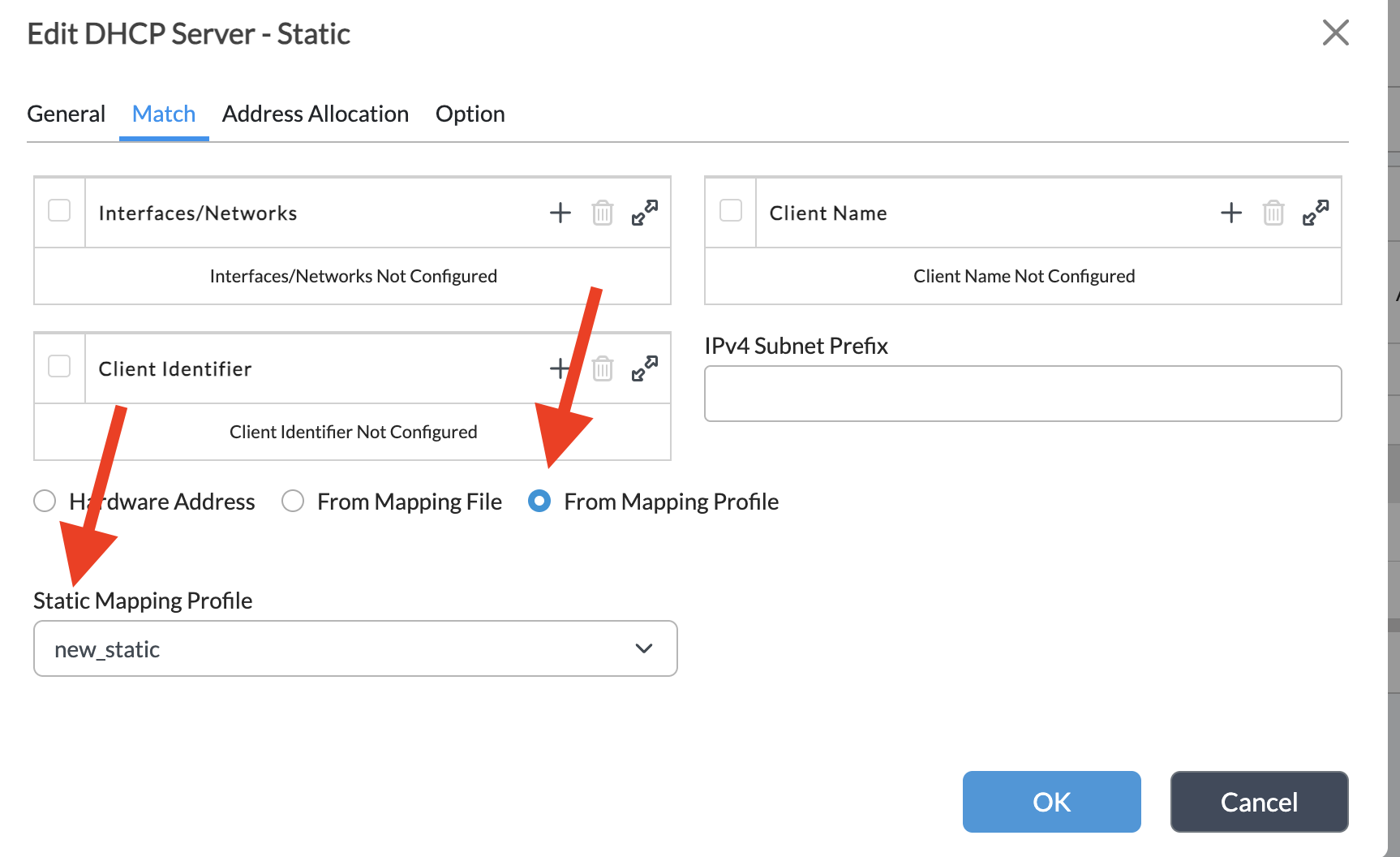

    • Under match - In addition to matching on basis of Interfaces/networks, we need to also add the match criteria for the hosts that the static server will assign static IPs to.

    • Address Allocation: Static → From Mapping Profile

    • Uses a Static Mapping Profile

    • Must be placed above the dynamic server





  2. Dynamic DHCP Server

    • Address Allocation: Dynamic → Address Pool

    • Uses an Address Pool

    • Handles clients not matched by the static server profile


Address Allocation Behavior

  • Static DHCP
    IPs are assigned based on MAC-to-IP mappings in the static mapping profile.

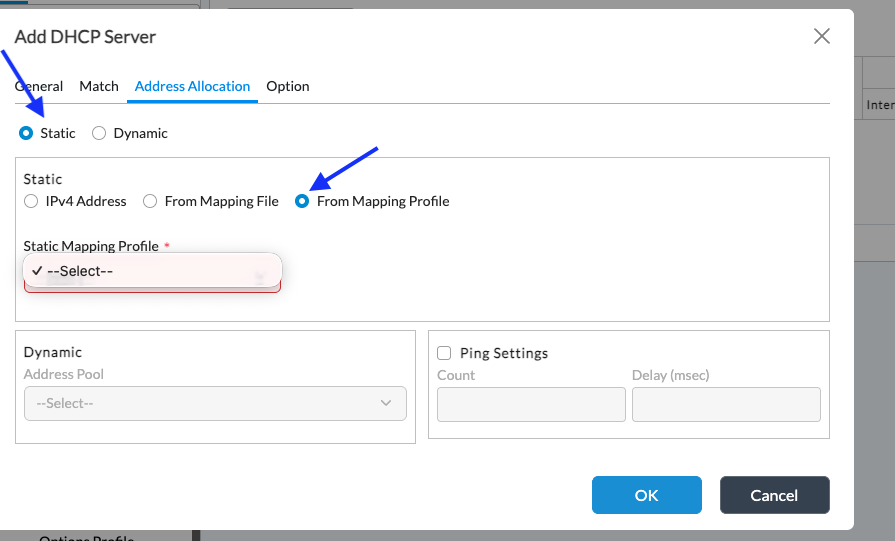

    (Refer to Screenshot 1)

  • Dynamic DHCP
    IPs are assigned from the configured address pool.

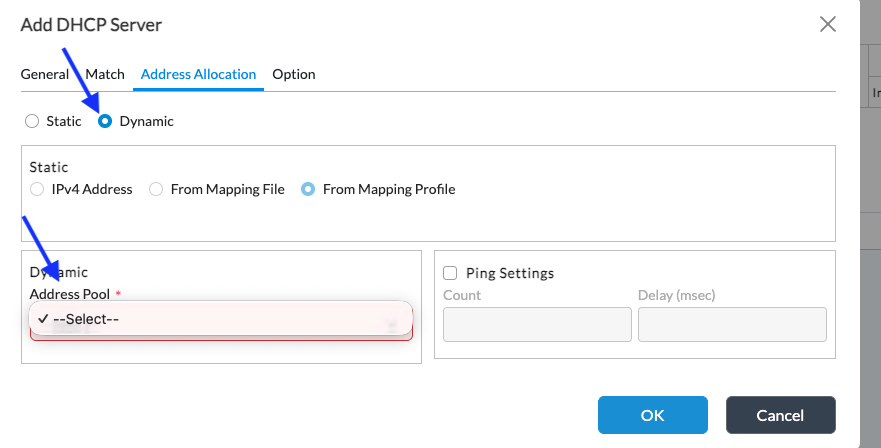

    (Refer to Screenshot 2)



Quick Troubleshooting Steps:

- View Active DHCP leases

show orgs org-services <org_name> dhcp active-leases

- Capture DHCP Traffic For a Client based on HW address

tcpdump vni-0/2 filter  "' port 67 or port 68 and ether host aa:bb:cc:dd:ee:ff '"

Summary

  • Static DHCP requires a static mapping profile

  • Use separate static and dynamic DHCP servers

  • Place static server above dynamic

  • Static = mapping-based, Dynamic = pool-based
