This is a known issue (fixed in releases 22.1.4 any hot-fix after 2025-03-08) - Internal PR 123397
- When making changes to FP in device context we may end up getting RPC error & this can be any change we try to make,
Error: RPC error towards ASCUSVGW01: unknown_element: /rpc/edit-config/config/org:orgs/org:org-services/sdwan:sd-wan/sdwan:forwarding-profiles/sdwan:forwarding-profile - We can make changes on the template itself , however on the device context changes it will result in RPC error along with any commit attempts.
- Workaround:-- Apply the forwarding profile changes on the template (which will be successful)
-- Before committing it to the appliance revert(removing nexthop-reevaluate-cgnat) changes as mentioned below and validate the commit changes.-- The commit should be successful.

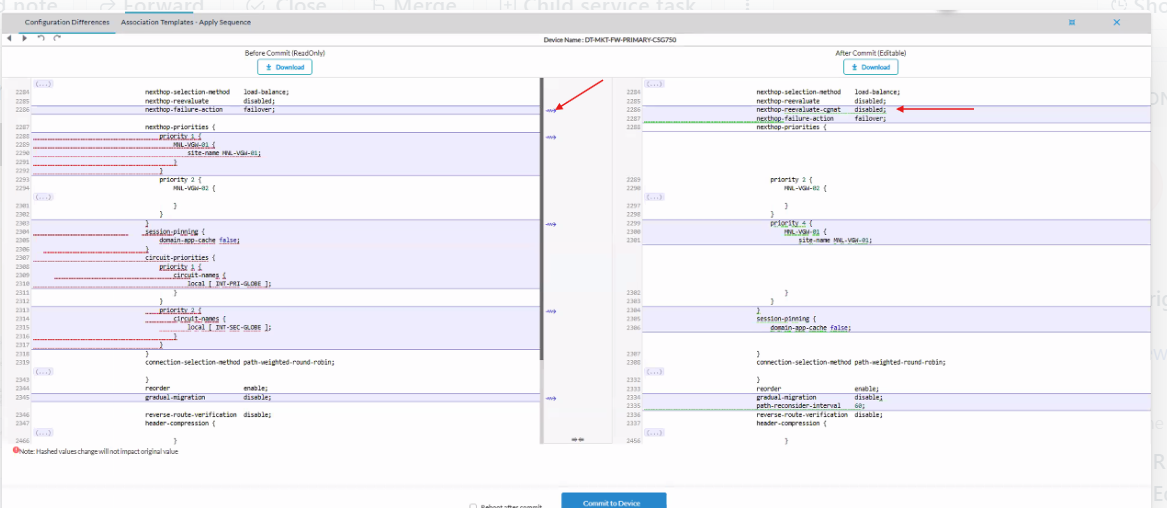

Just a example snippet (please remove the cgnat line by merging from left to right)
In case above fails, and we are unable to upgrade the director - We will need to make changes on the device cli itself for any FP related changes
