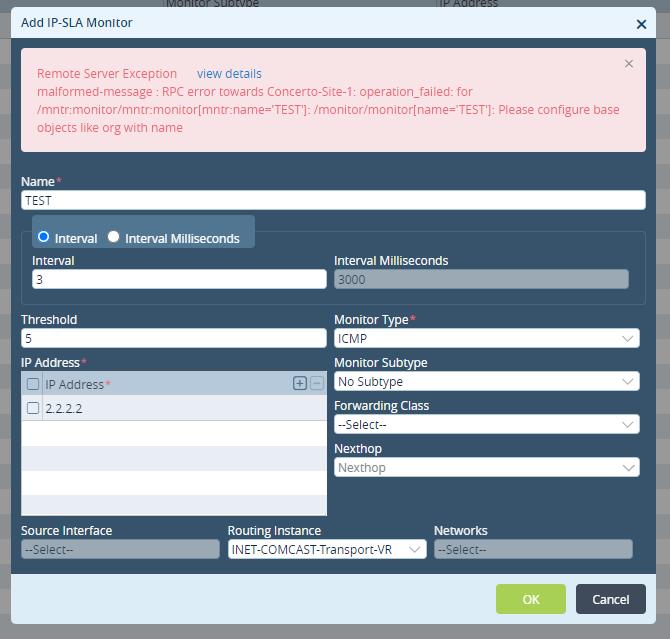

Error snippet:
Bug-ID: 62369
Description: “global” base object has been deleted on DUT, causing commit issue on the appliance
Fix-Release:
21.2.3 Build after 2023-10-13
21.3.3 Build after 2023-10-13
22.1.2 Build after 2023-10-24
22.1.3 and above GA release.
Workaround:
Option-1:
Upgrade to any of the latest hotfix image and then perform a Sync-From Appliance from the Director.
Option-2: (without the need to upgrade)
Step-1:
[admin@Branch: ~] $ confd_load -u admin -g admin -F j -p /predefined
<This output will be empty>
Step-2:
Create a file like what is shown below using vi editor or any text editor
[admin@Branch: ~] $vi /tmp/test
predefined {
global {
init true;
}
}
Save the file by pressing Esc key :wq!
Step-3:
Load-merge this config using the below lm command.
[admin@Branch: ~] $ confd_load -d -lm -u admin -g admin -F j /tmp/test
Sample-Output:
[admin@Branch: ~] $ confd_load -d -lm -u admin -g admin -F j /tmp/test
starting user session ctxt=system user=admin groups=[admin]
DEBUG item is not writable - Data store is not writable
Step-4: (Verification):
[admin@Branch: ~] $ vsh connect vmod -c "show objid base all"
It should show something like below:
vmod> show objid base all
List of bases:
Base-name: Tenant-VSA
Base-name: global <<<<This should be present.
Step-5:

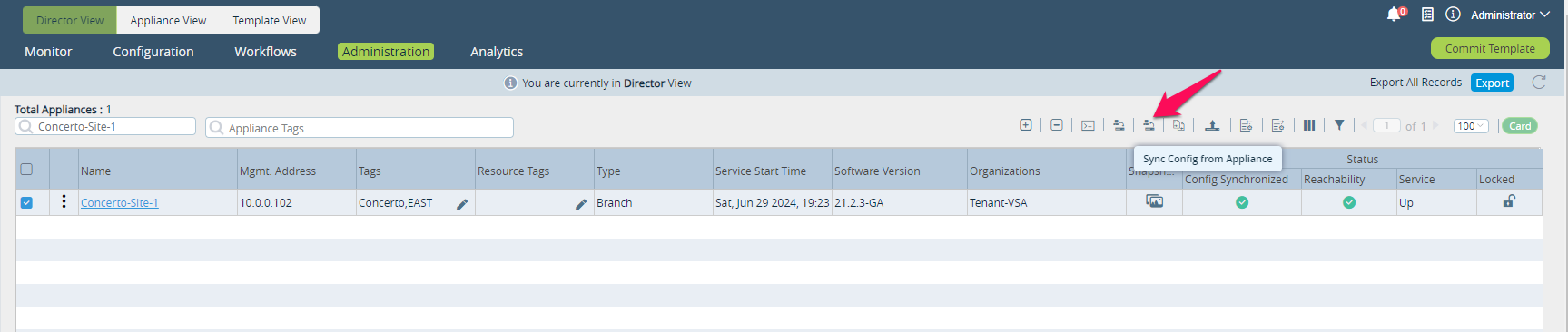

Perform a sync-From of the appliance from the Director.
