In this KB, a use case will explain that how to configure the bridge interface in the Versa FlexVNF.

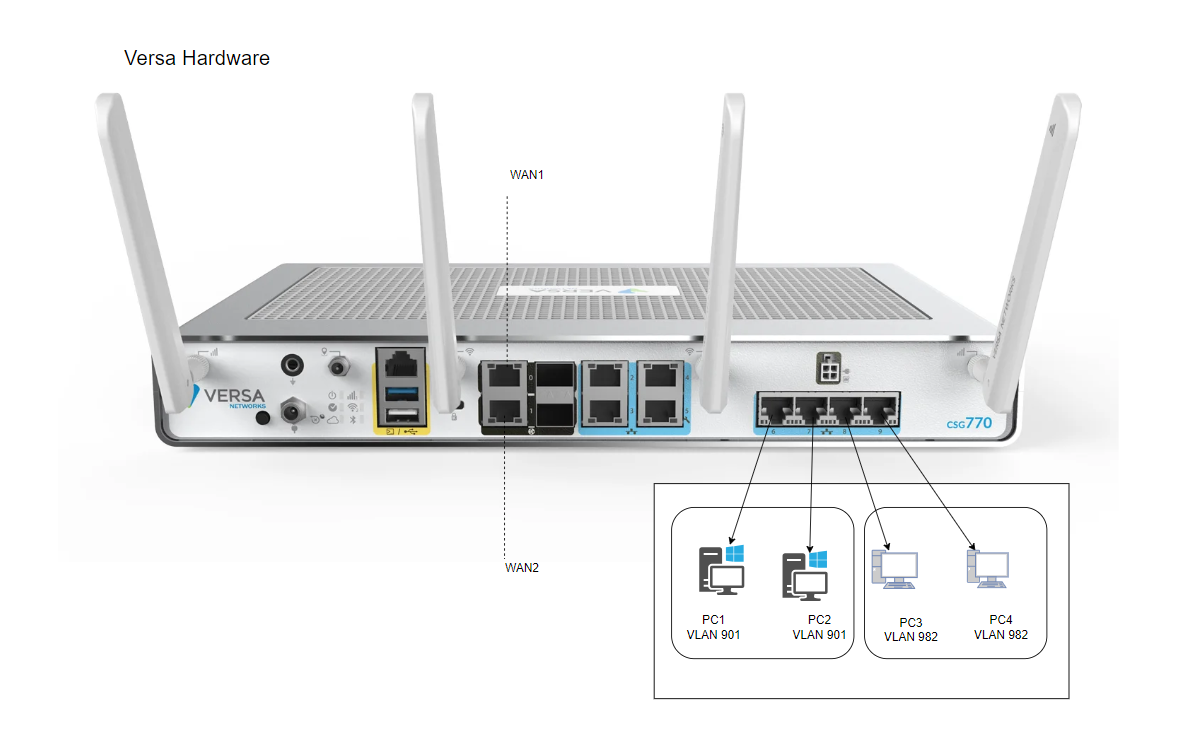

In the Above diagram, there may be a requirement where the customer wants to use the default switch feature (Where the number of users Less than the available ports)above
Please follow the below steps.

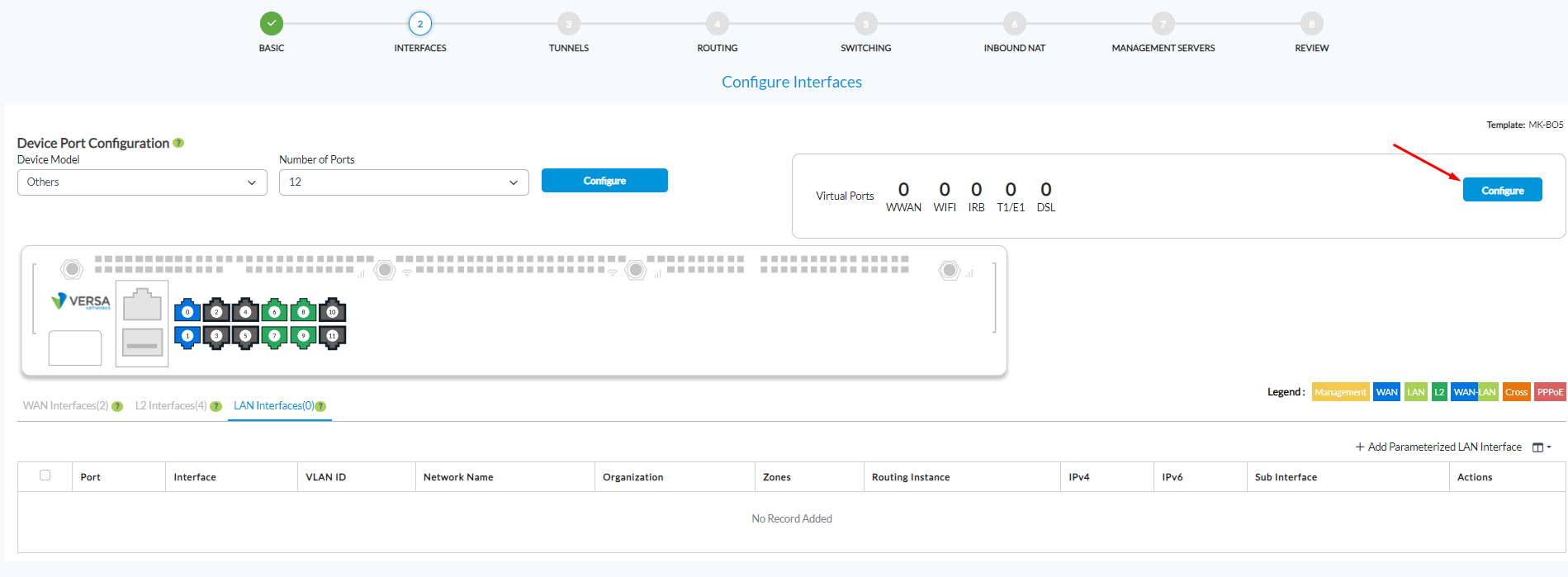

- Configure the workflow template:

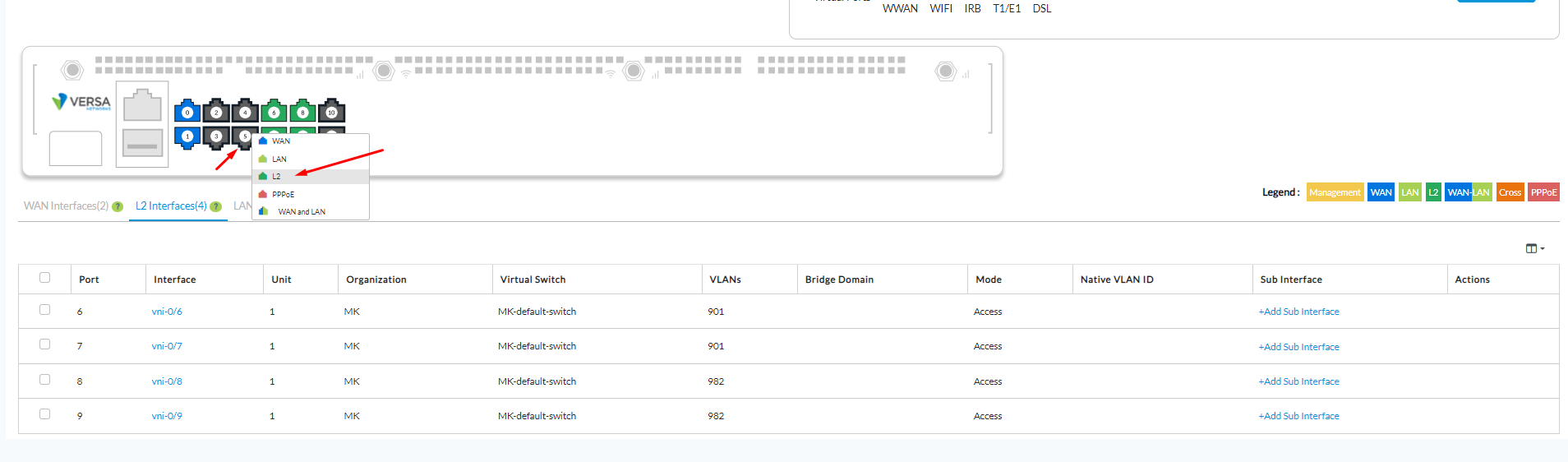

Configure the L2 interfaces
Note: If you want to connect one more switch from one of an L2 interface, you can configure that port as a trunk.

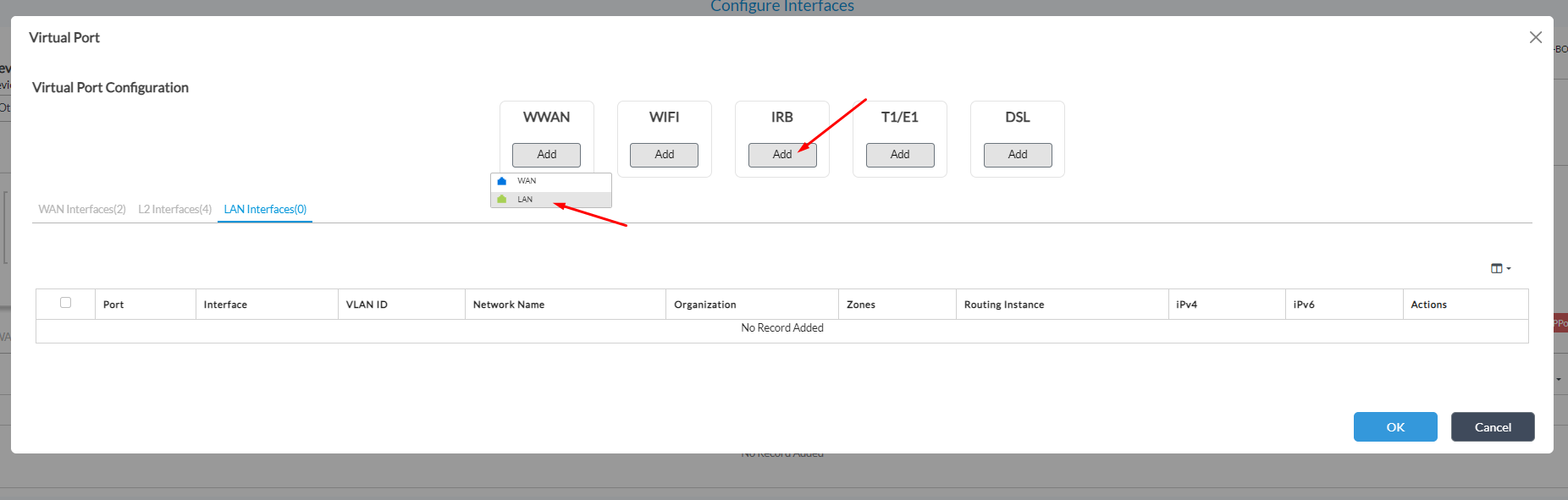

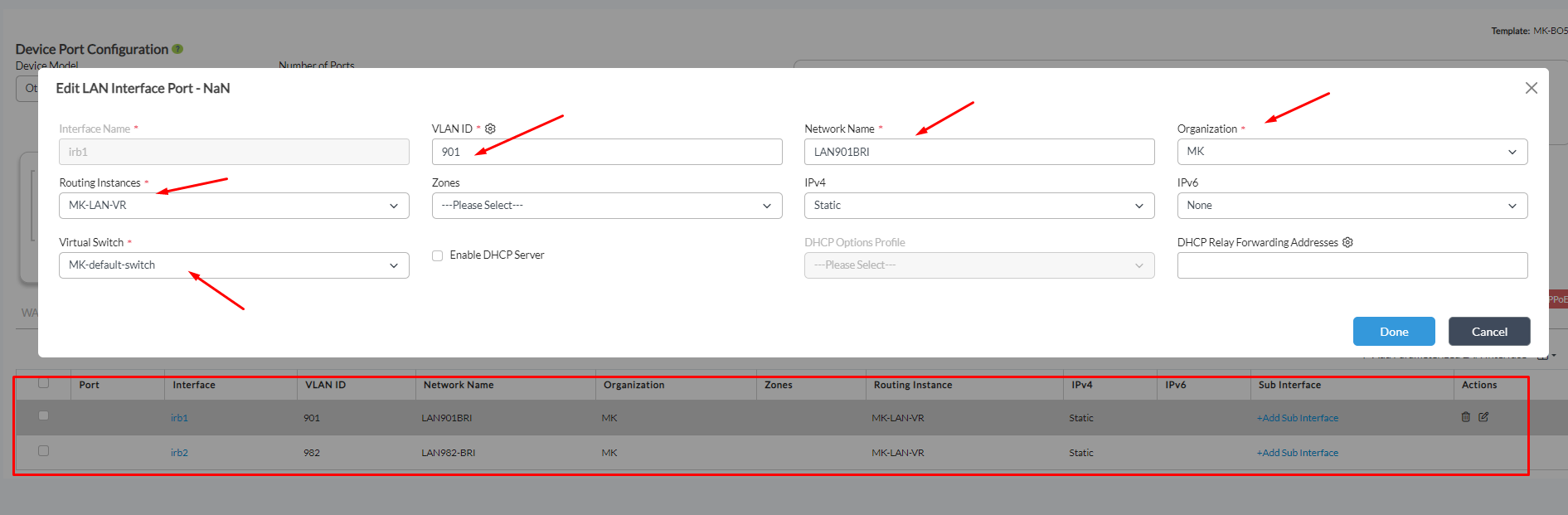

- Configure the IRB interface and deploy the template.

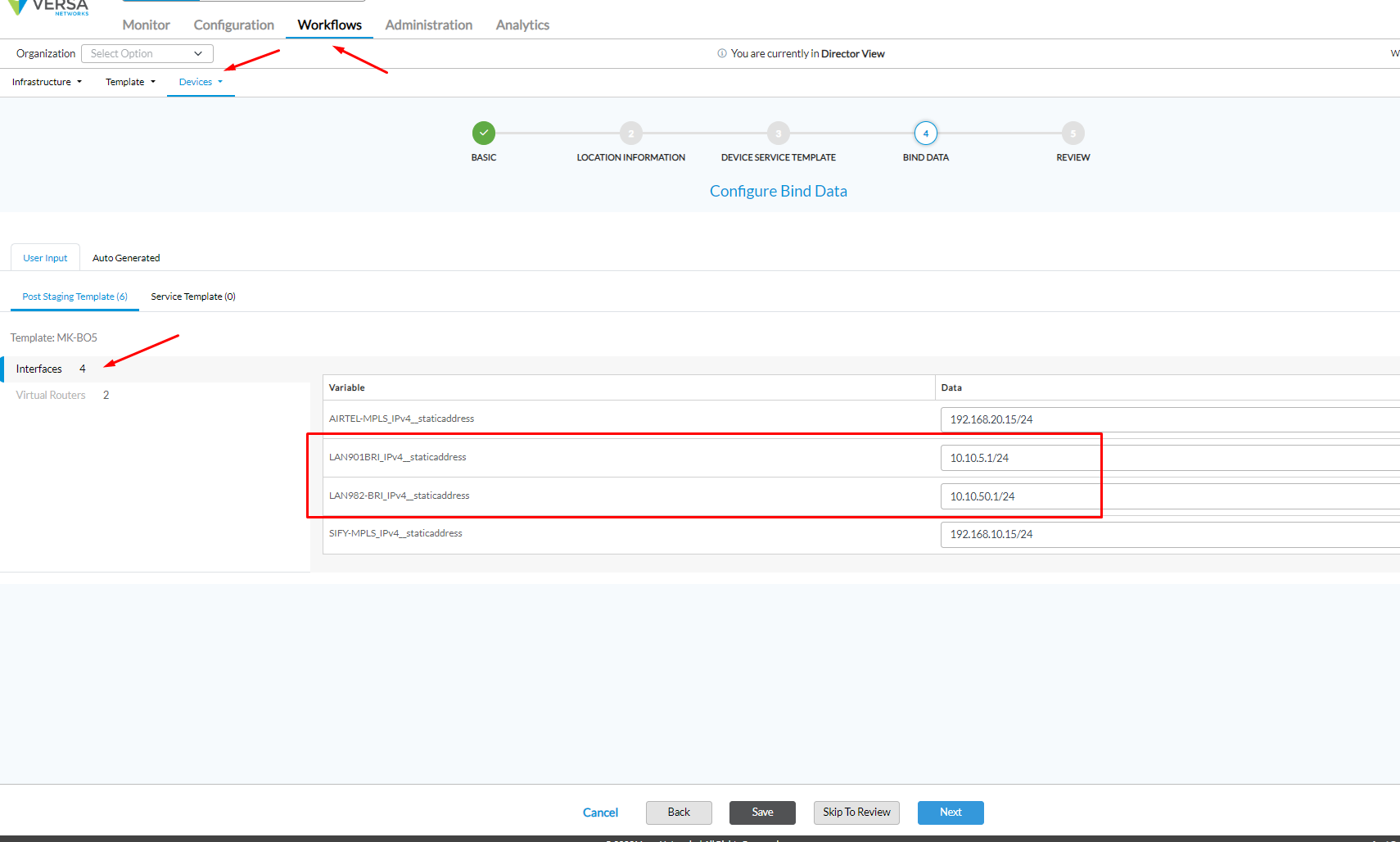

- Fill in the bind data and deploy the workflow device. And commit the template to the appliance.

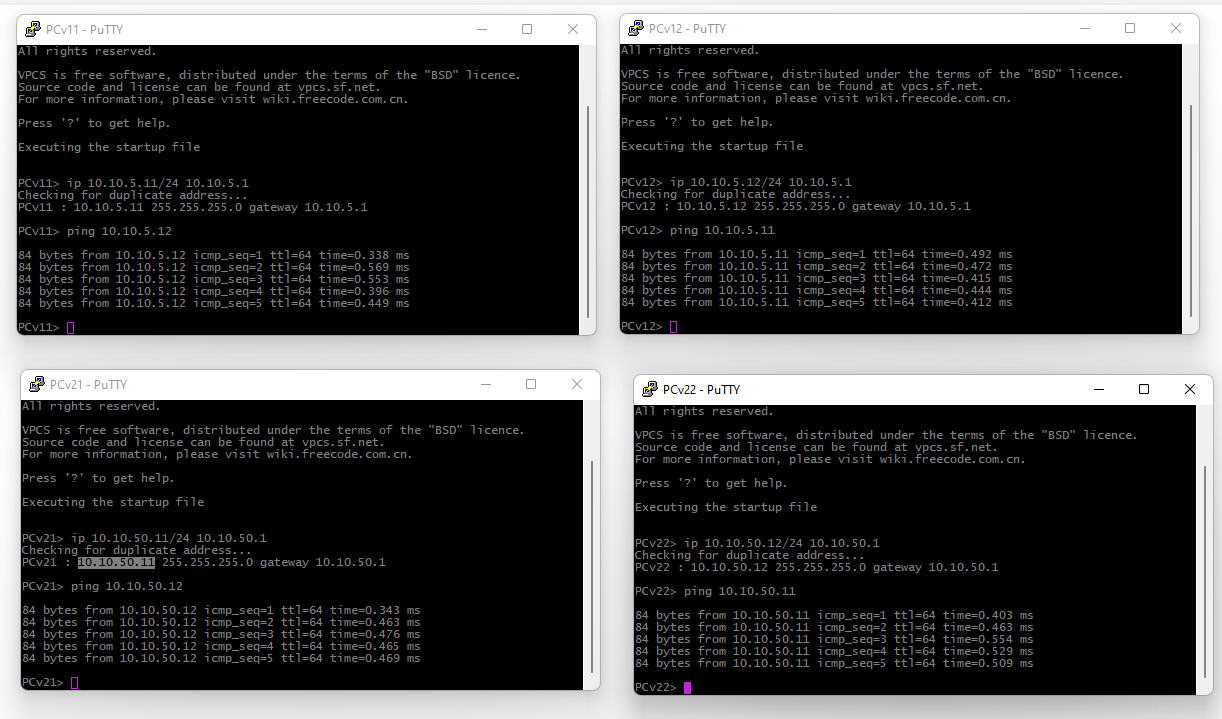

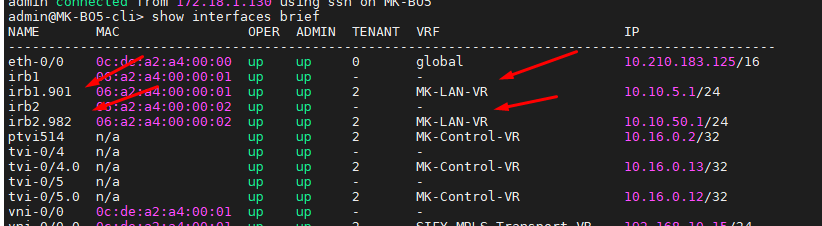

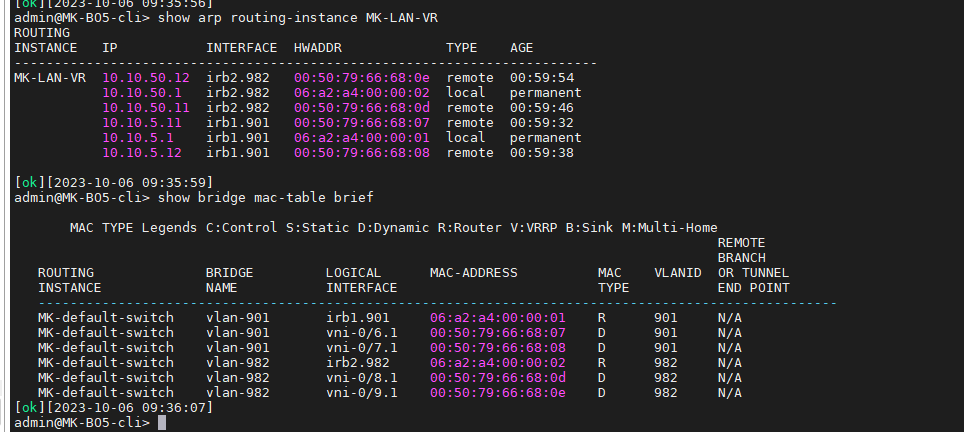

Results:
