Via PR 71821, in 22.1.x the Analytics will display overall memory consumption using the values from the output of "show system detail" (branch would send these values in the logs towards analytics)

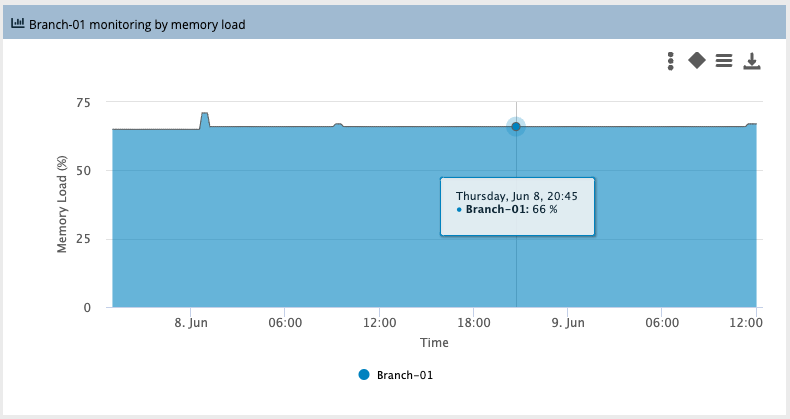

Analytics: Analytics system will show the overall system Memory and CPU % will be from load-stat
Load-stats is only a reflection of the load on the data processing (vsmd).
The same is true for the memory– it is a reflection of the increase in the VSMD’s used memory. The load value is in percentage.

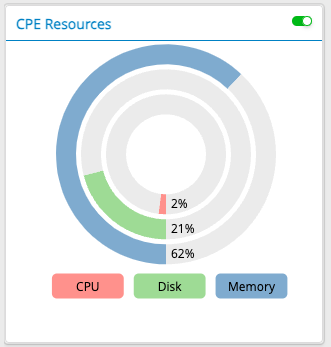

Director: show system details will show the overall system Memory and CPU % will be from load-stat
Sample Outputs:
Director:
admin@Branch-01-cli> show system details
Software Details
Software Release 21.2.3
Package name versa-flexvnf-20230413-100510-18f21b3-21.2.3
Hardware Details
Hypervisor Type kvm
Manufacturer QEMU
SKU Number Not Specified
Model Standard PC (i440FX + PIIX, 1996)
Serial number Branch-01
Hardware ID number Not Specified
CPU model pc-i440fx-bionic
Number of CPUs 3
Number of NICs 5
Memory 7.80GiB
Disk size 69.85GiB
Free NICs 0
Free memory 2.95GiB (~62-66% Utilized)
Free disk 54.95GiB
SSD present no
uCPE Platform no
Analytics:
admin@Branch-01-cli> show system load-stats
VSN CPU MEM LOAD
ID LOAD LOAD FACTOR
-------------------------
0 2 33 2
Note: From 22.1 and above, Both Director and Analytics will be using show system details stats to track CPU/Memory
Enhancement ID to track this is:71821
